※ Automatic mains voltage monitoring.
※ Overheating protection.
※ Designed for dent pulling of different kinds of car steels such as conventional steel and stainless steel.
※ With HUA curved silicon steel sheet and energy efficient main transformer.
※ With DELIXI, OMRON and PANASONIC high quality relay.
※ High precision time adjustment system.
※ Equipped with switchable spot gun and multifunctional puller.
※ Uniquely designed gun cable support arm allows flexible movement with 360°rotation.
※ Complete with air filter and pressure regulator.
※ Stepless current and time regulation.
※ Single-sided and double-sided welding.
※ Digital graphic LCD display.
※ 10 preset weld programs.
※ 60 memory functions.
※ Electrodes of C-type gun can be step-by-step opened and quadratic rapid closed (X-type gun is available as an option).
※ Variety of welding procedures are available such as shrinking, washer, direct-pulling, spot welding, flattening, waveform wire,
stud welding, OT washer and triangle washer.
Technical Data
Input voltage:
Input power:
Input current:
Max welding current:
One-side welding thickness:
Two-side welding thickness:
Air supply pressure:
Operation way:
Welding time range:
Dimensions:
Weight:
|
AC380V 50/60Hz
30KVA
50A
9900A
1.0+1.5mm
2.5+2.5mm
4-8kg
Electronic timer continuously
0-99s
700x530x1800mm
138kg
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.

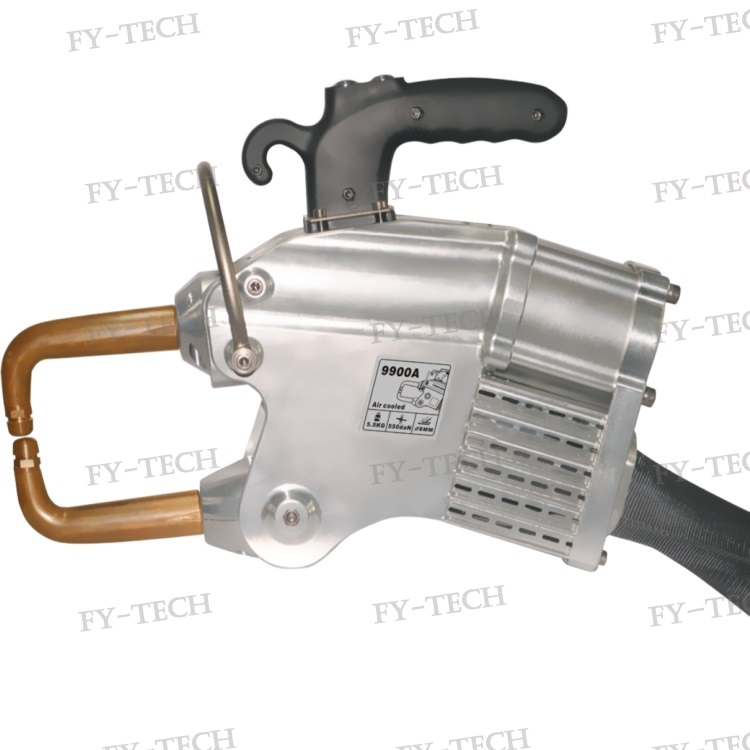

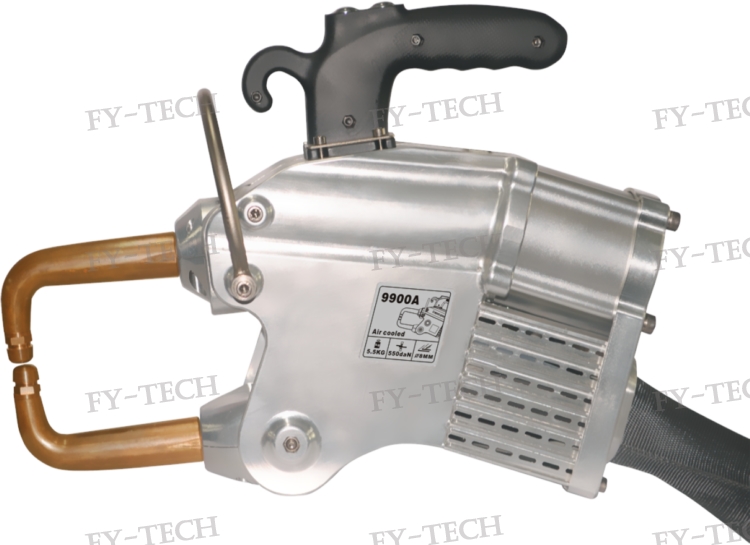

Standard X-type Gun

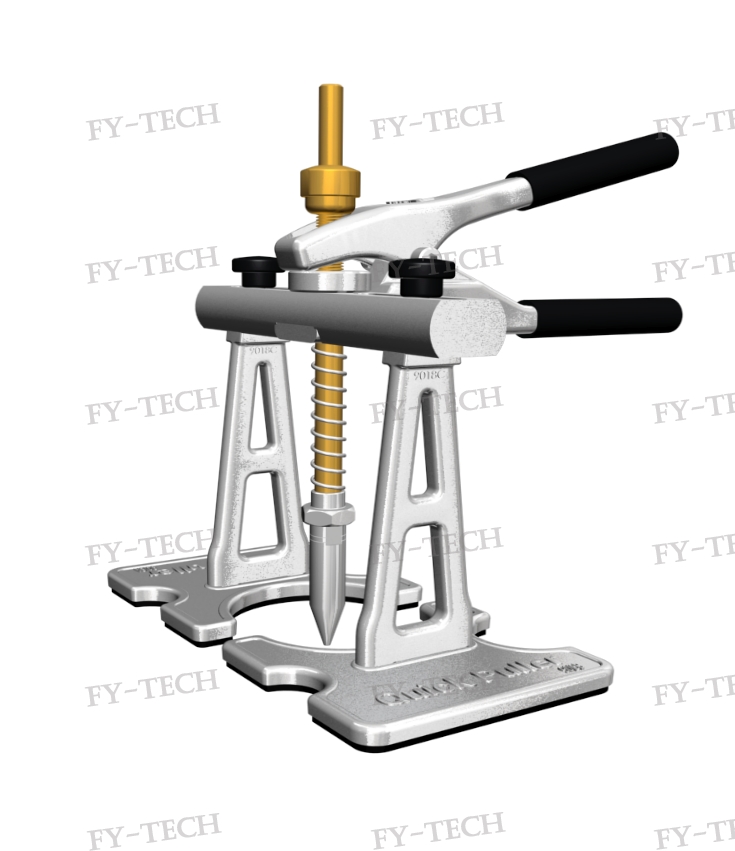

Quick Puller

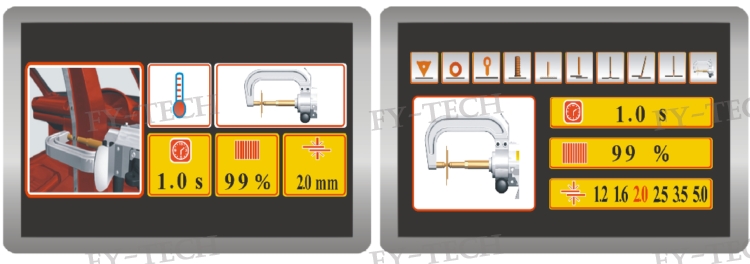

Control Panel
X-type Gun Details
Pictures are for reference only, please subject to our available products.

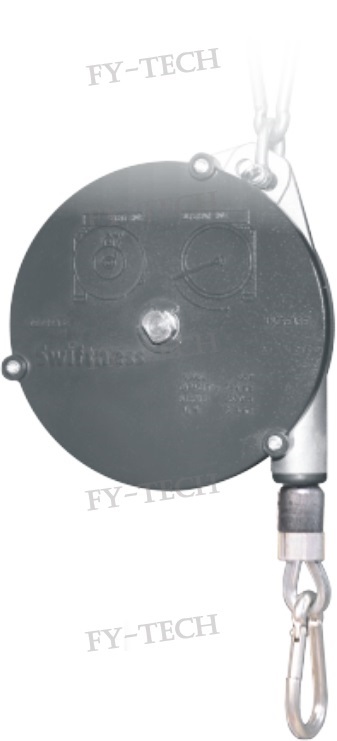

Optional Balancer

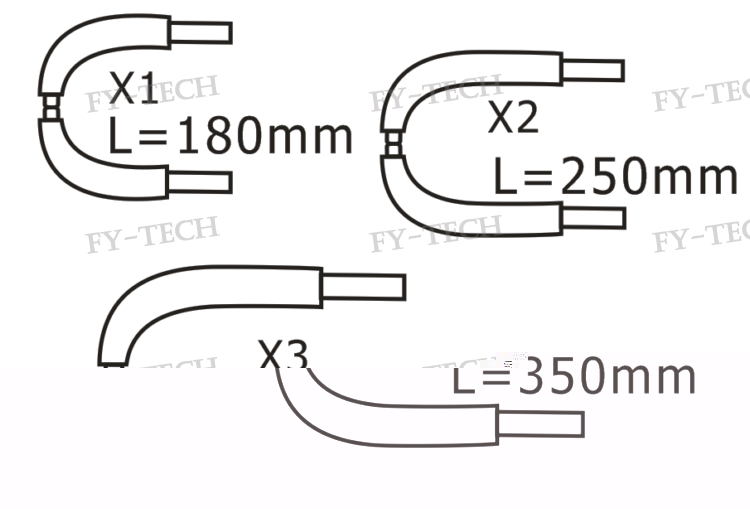

Optional Arms of X-type Gun

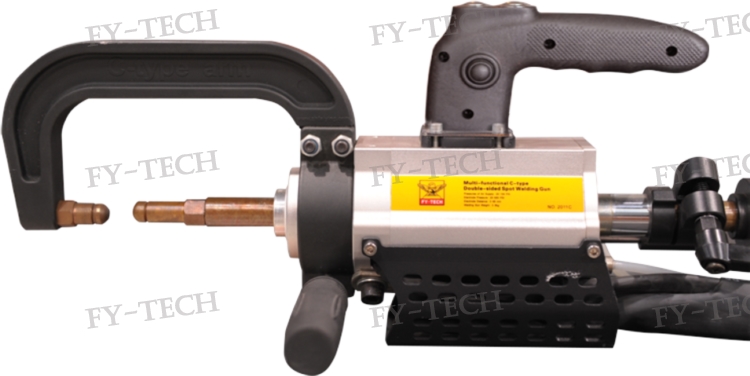

Optional C-type Gun
Users Can Choose C-type Gun or X-type Gun with Different Unit Price.

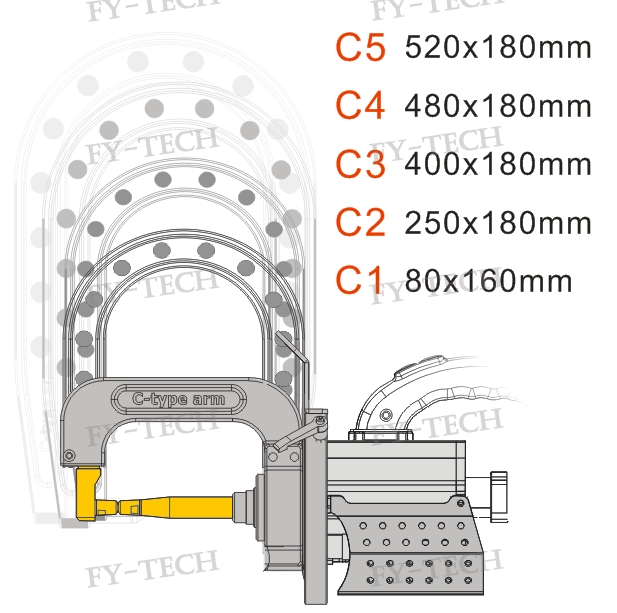

Optional Arms of C-type Gun
C-type Gun Details

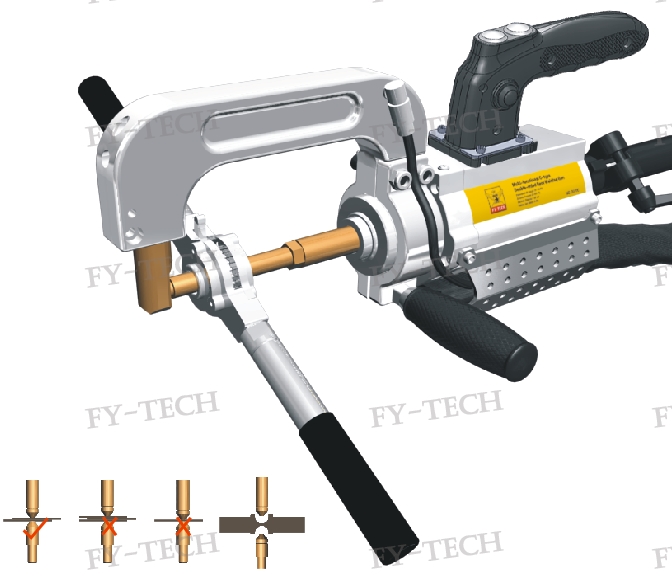

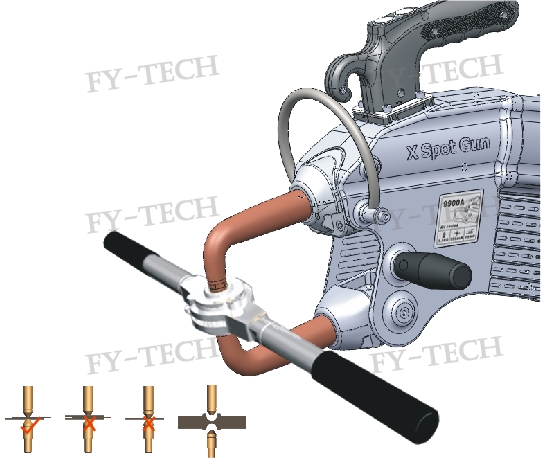

Optional Electrode Sharper
1) For X-type Gun
2) For C-type Gun

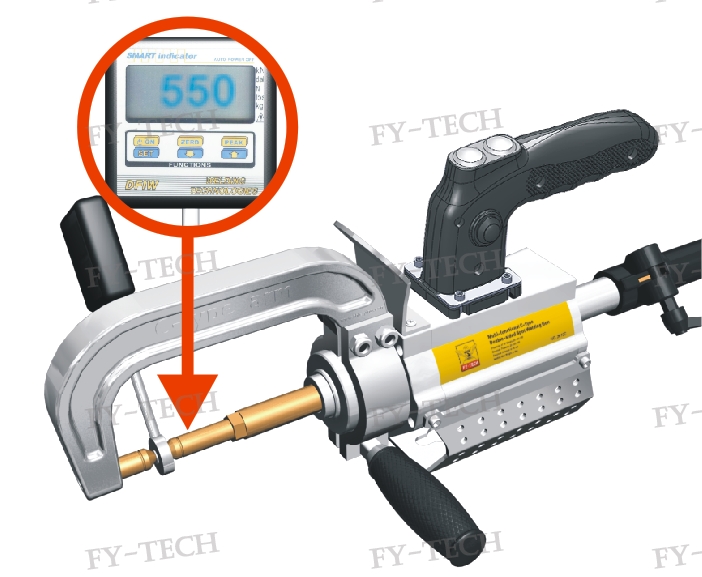

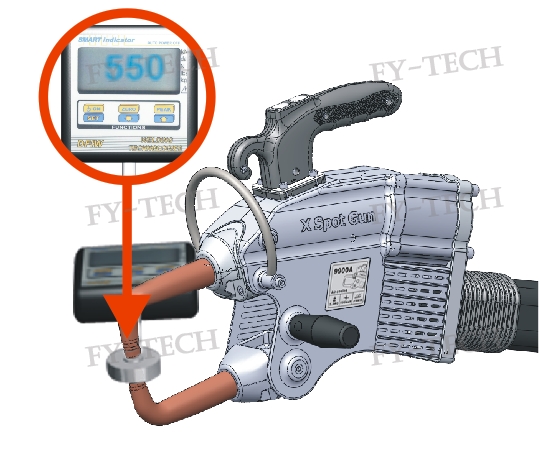

Optional Electrode Pressure Gauge
1) For X-type Gun
2) For C-type Gun

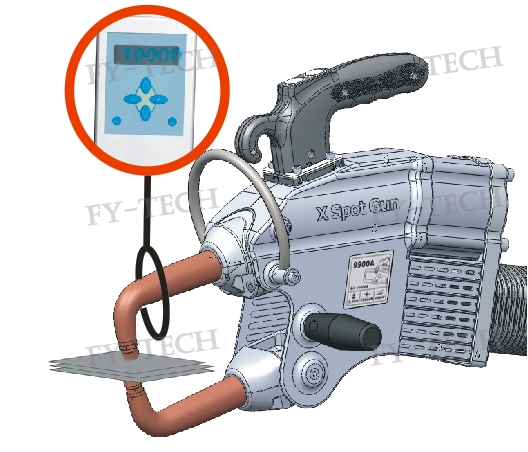

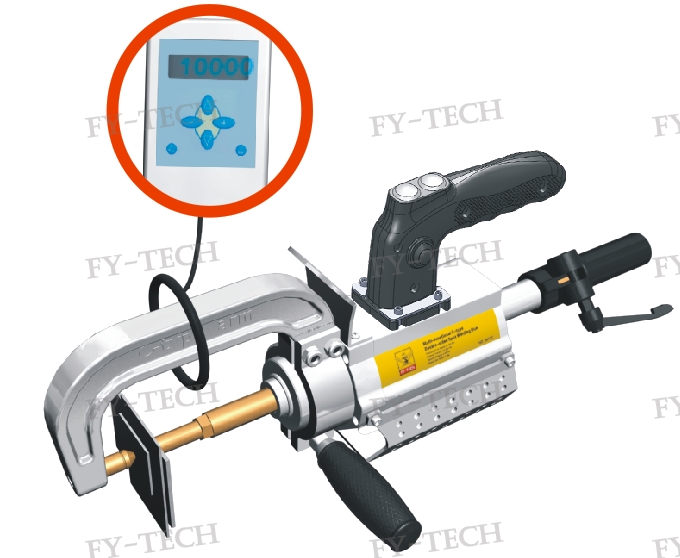

Optional Welding Current Tester
1) For X-type Gun
2) For C-type Gun
Pictures are for reference only, please subject to our available products.
