※ Automatic mains voltage monitoring.
※ Overheating protection.
※ Designed for dent pulling of different kinds of car steels such as conventional steel and stainless steel.
※ Uniquely designed gun cable support arm allows flexible movement with 360°rotation.
※ Complete with air filter and pressure regulator.
※ Stepless current and time regulation.
※ Single-sided and double-sided welding.
※ Digital graphic LCD display.
※ 10 preset weld programs.
※ 60 memories functions.
※ Electrodes of C-type gun can be step-by-step opened and quadratic rapid closed.
※ Variety of welding procedures are available such as shrinking, washer, direct pulling, spot welding, flattening, waveform wire,
stud welding, OT washer and triangle washer.
※ Complete with pneumatic vacuum cupule.
Technical Data
Input voltage:
Input power:
IRMS:
IMAX:
One-side welding thickness:
Two-side welding thickness:
Air supply pressure:
Operation way:
Weld timing range:
Dimensions:
Weight:
|
AC380V 50/60Hz
60KVA
80A
15000A
1.0+1.5mm
3.0+3.0+2.0mm
4-8kg
Electronic timer continuously
0-99s
800x680x2030mm
195kg
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.

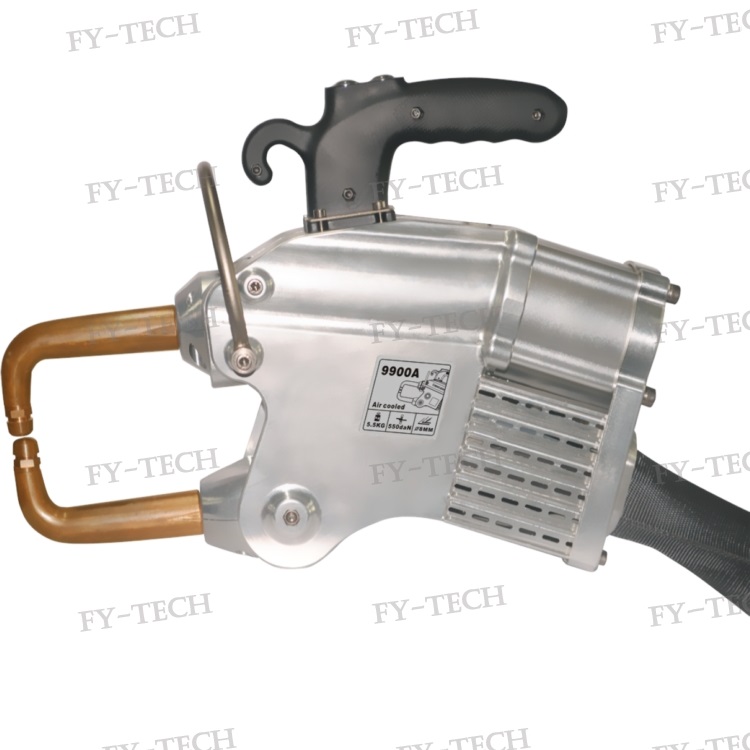

Standard C-type Gun

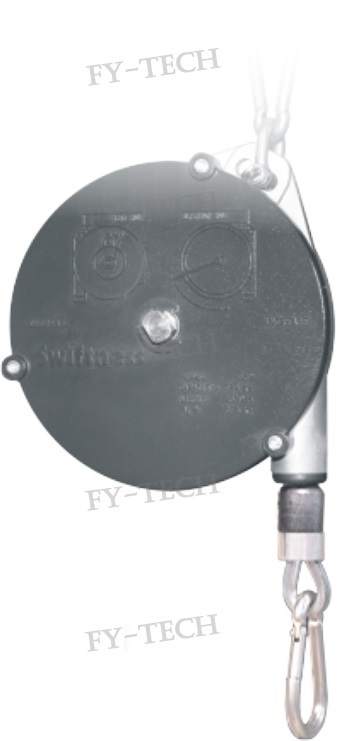

Balancer

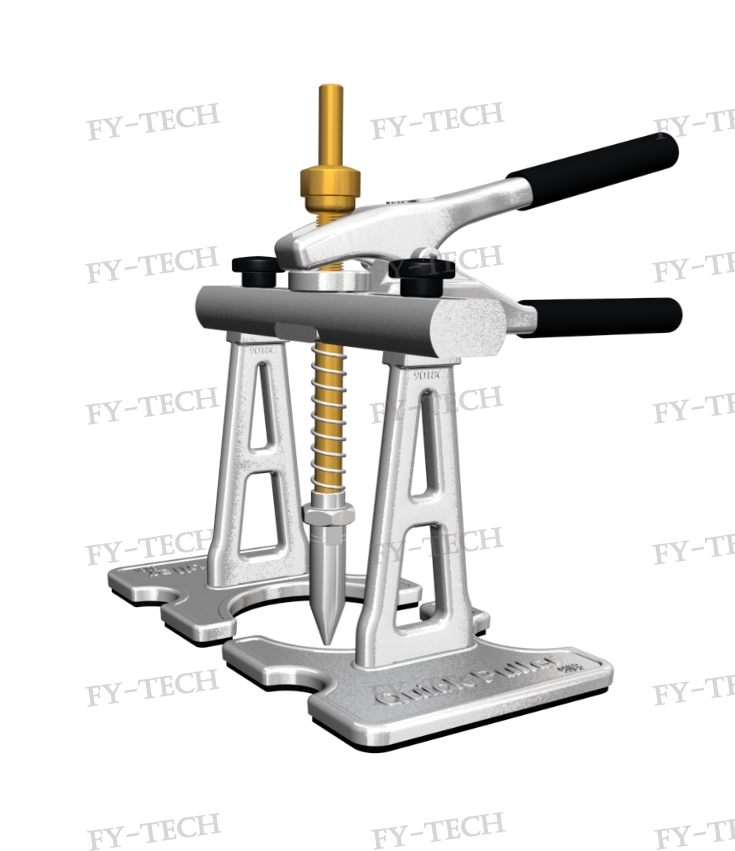

Quick Puller

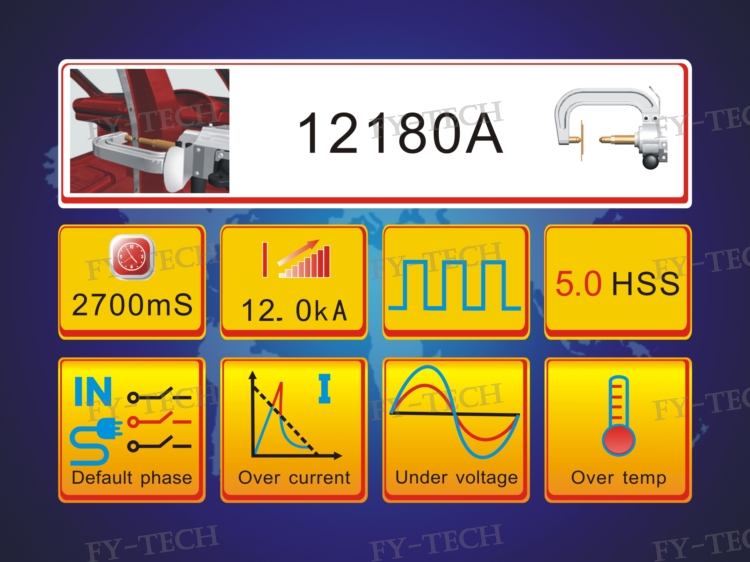

Control Panel

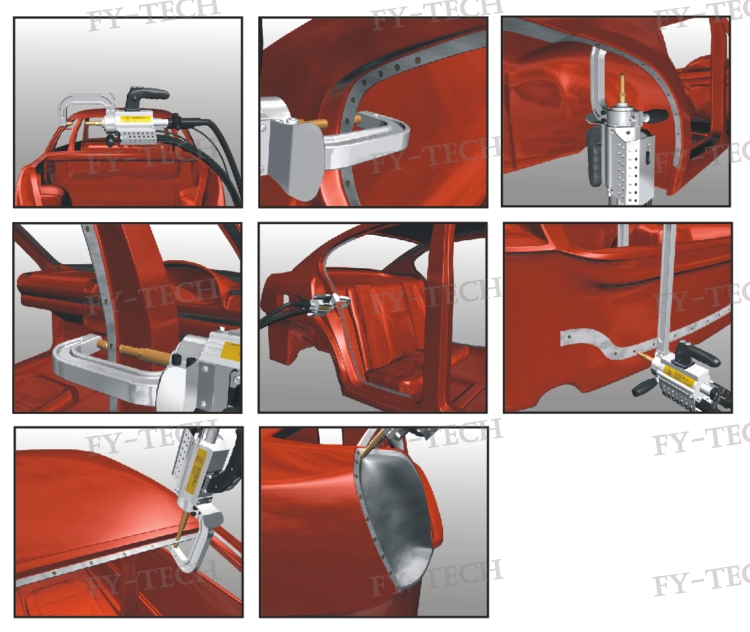

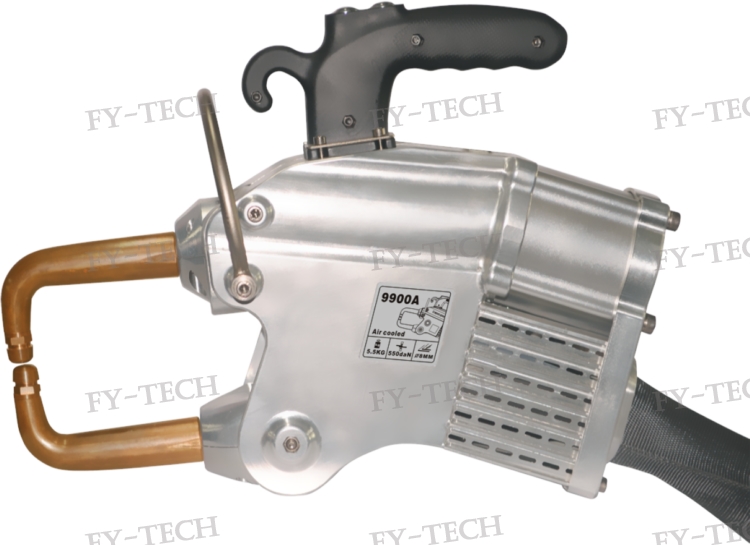

C-type Gun Details
Pictures are for reference only, please subject to our available products.

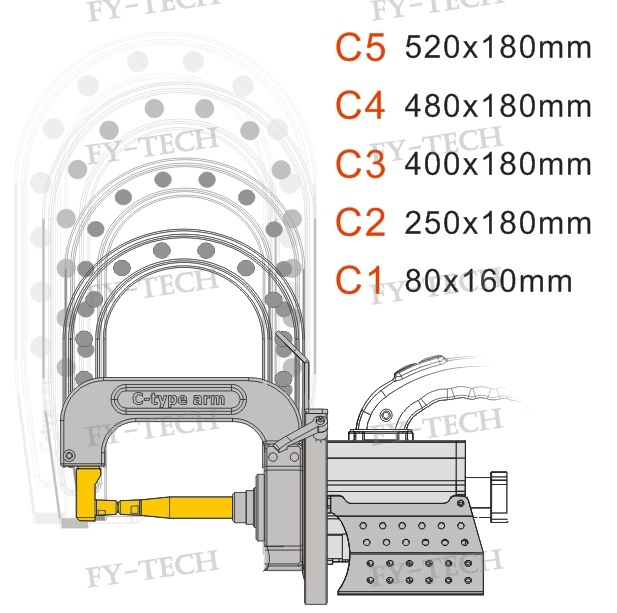

Optional Arms of C-type Gun

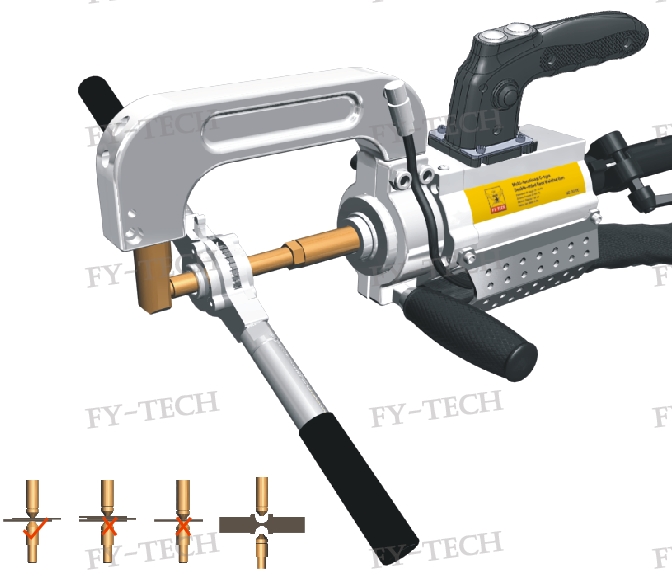

Optional X-type Gun
User can choose C-type Gun or X-type Gun with different unit Price.

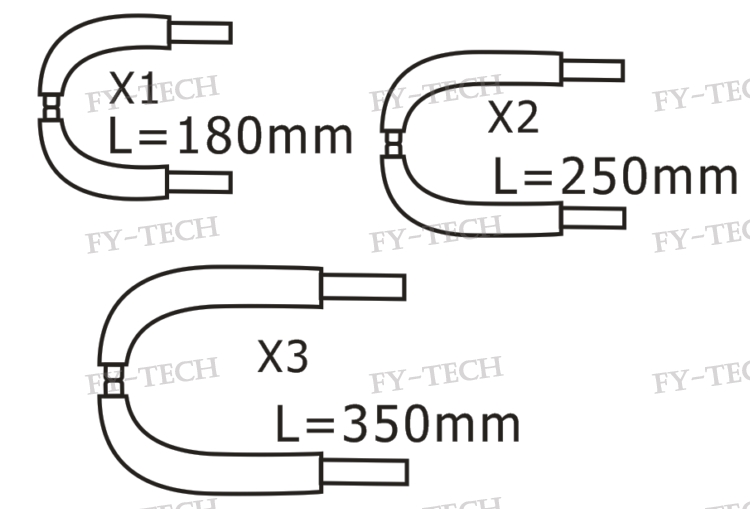

Optional Arms of X-type Gun

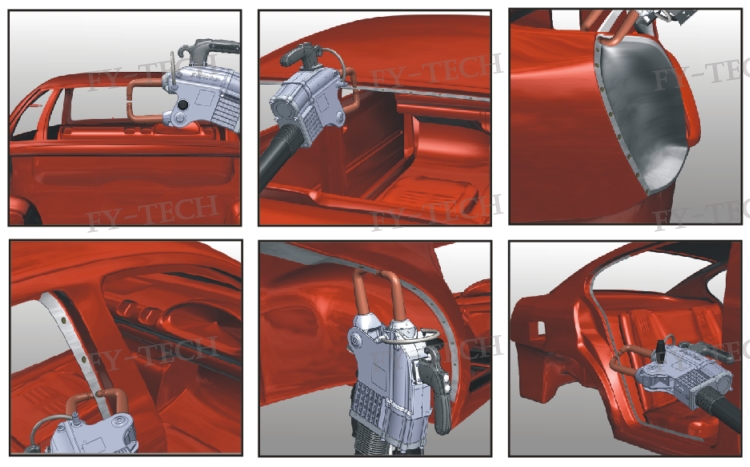

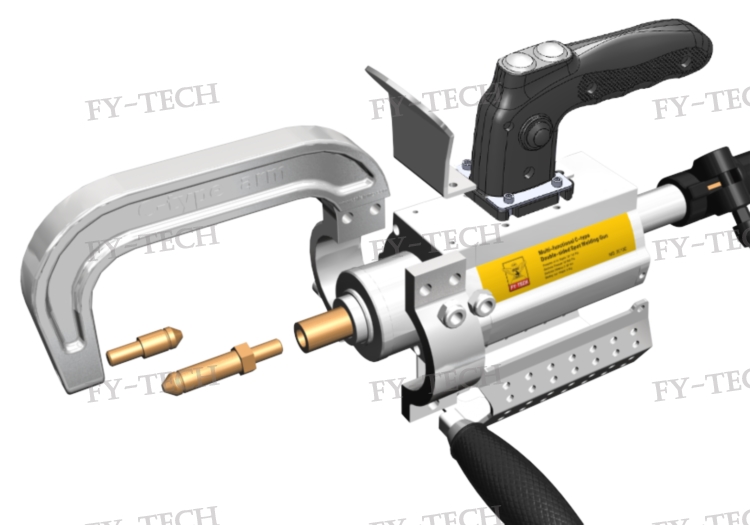

X-type Gun Details
Optional Electrode Sharper

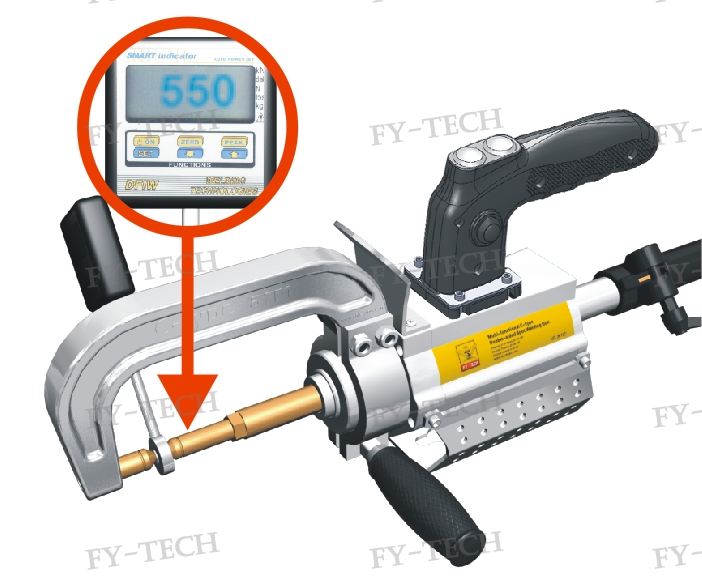

Optional Electrode Pressure Gauge

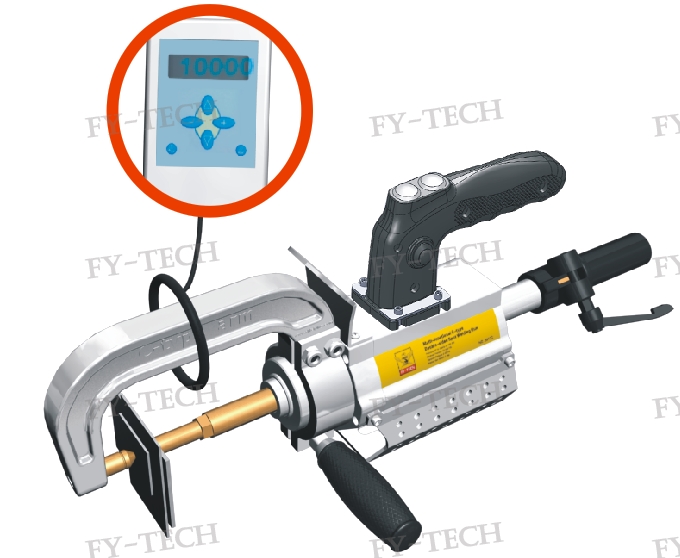

Optional Welding Current Tester
Pictures are for reference only, please subject to our available products.
