※ Microprocessor control system optimizes the welding parameters. Due to the adoption of advance digital control technology and user
friendly design, all you have to do is select the welding current corresponding to the workpiece thickness to achieve the best weld quality.
※ Automatic mains voltage monitoring.
※ Welding gun testing function to evaluate the using status of welder more completely. Overheat protection.
※ Suitable for dent pulling of different kinds of car steels such as conventional steel,stainless steel,etc.
※ Various of welding procedures are available such as shrinking,washer,direct-pulling, spot welding, flatten-ing, waveform wire,stud welding,
OT washer, triangle washer, etc .
※ Digital control system with steady power output.
Technical Data
|
Input Voltage
Rated Input Power
Rated Input Current
Max Output Current
Output Voltage
Welding Time Range
Material Thickness
Packing Dimensions
Gross Weight
|
AC200V or 380V 50/60Hz
12.3KVA
32A
2000A
1-13V
0-99s
0.8+1.2mm
64×34×33.5cm (Main Machine)
65×18×86cm (Trolley)
32kg / 24.5kg
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.
Main Machine

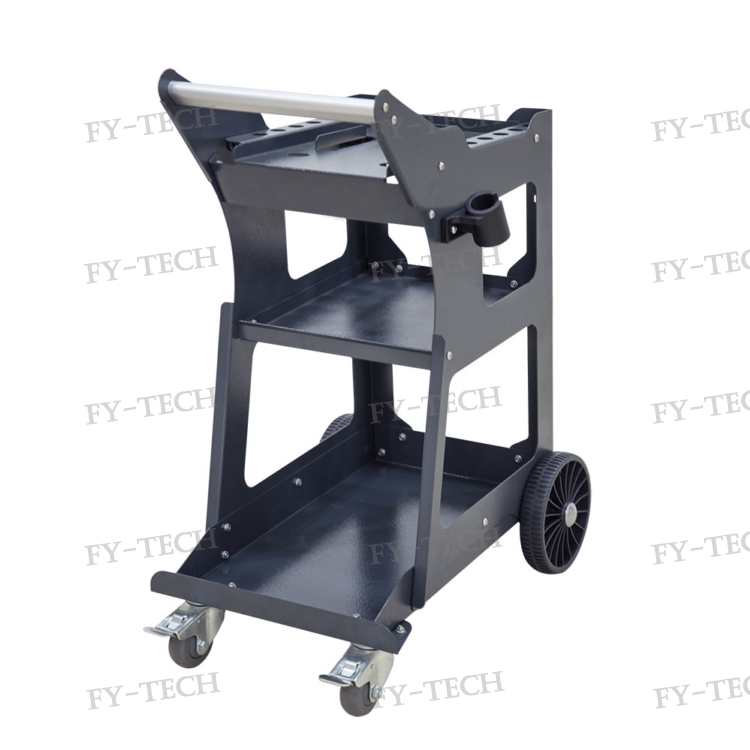

Trolley

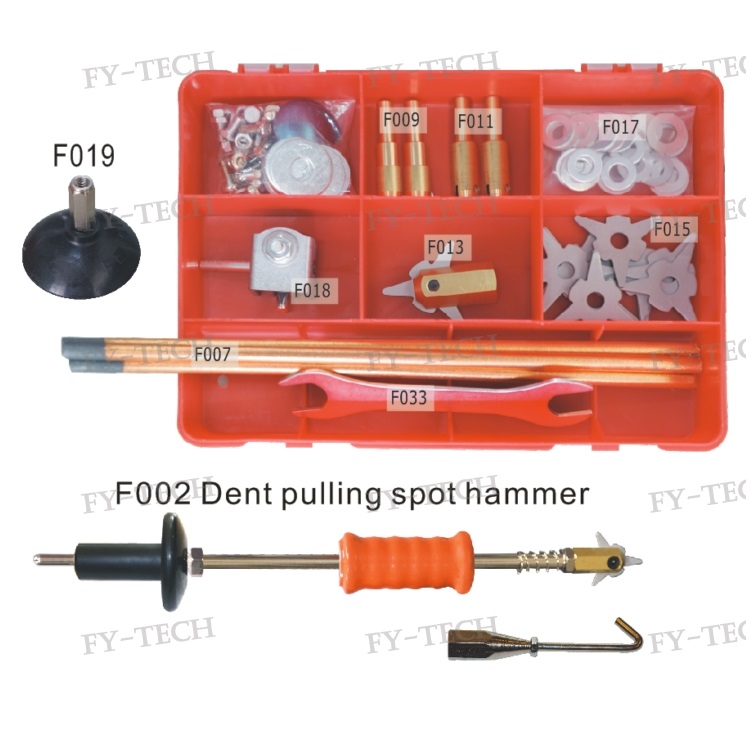

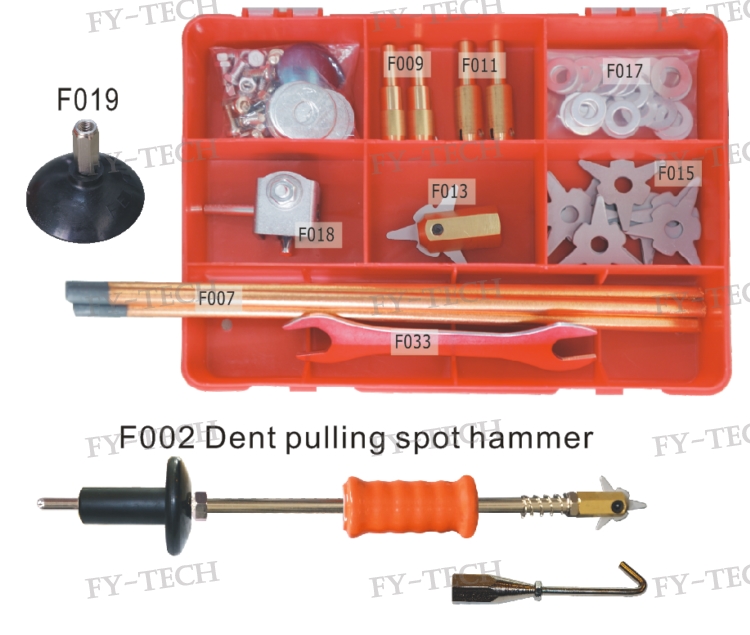

Accessories
|
Accessories
|
Quantity
|
|
F002 Pulling Hammer with Hook
F007 Carbon Rod
F009 Carbon Rod Connector
F011 Washer Connector
F013 Triangle Washer Connector
F015 Triangle Washer
F017 ɸ10mm Washer
F018 Earth Clamp
F019 Manual Cupule
F033 Wrench
|
1 set
3pcs
1pc
1pc
1pc
10pcs
15pcs
1pc
1pc
1pc
|

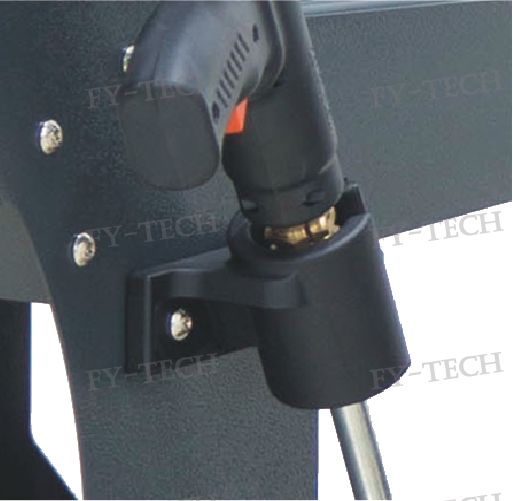

Details
Pictures for reference only, please subject to our available products.
For More Information, Contact Us!
