※ With a multifunctional digital display panel and the most advanced DSP control technology. It features one button intelligent design to
automatically track equipment information and to select the welding modes for various materials like steel and stainless steel.
The user can store the welding parameters easily and safely.
※ IGBT inverter and soft switching control technology allows for energy efficient steady welding with fast arc ignition. Materials' mechanical
properties are maintained with less welding deformation and spatter. User can quickly and easily weld car bodies with various materials
and achieve a perfect performance. There is also less post welding treatment work and less welding sparks.
※ With a world famous brand of welding power supply, IGBT inverter technology and soft switching control technology. Unit has high
protectiveness, extensive applicability and a world class welding performance.
※ Complete with a two-roll dual drive wire feeder.
Technical Data
|
Input Voltage
Rated Input Power
Rated Input Current
Min ~ Max Output Current
Duty Cycle
No-load Output Voltage
Efficiency
Power Factor
Insulation Grade
Steel Wire Diameter
Wire Feeder
Size
Weight
|
380V
10.5KVA
16A
35A/15.7V~320A/33V
250A/100%~320A/65%
65V
≥90%
≥0.95
F
Ф0.6-1.2mm
Two-roll Drive
93x35x83cm
90kg
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.
Details

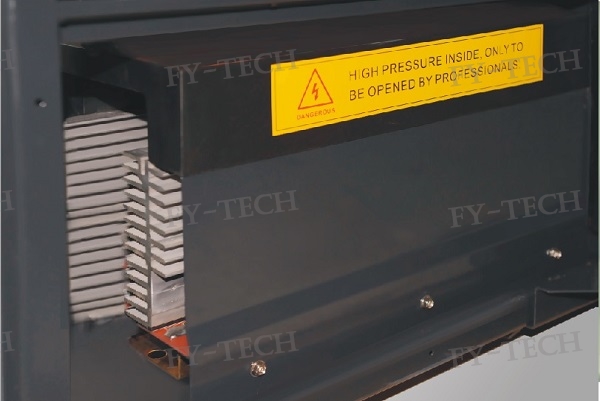

1) IGBT Inverter Power Supply

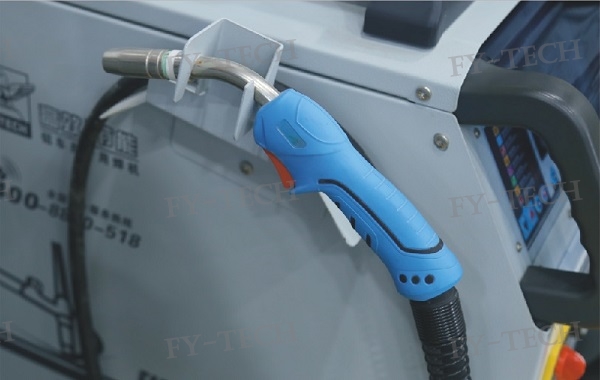

2) Welding Gun Holder

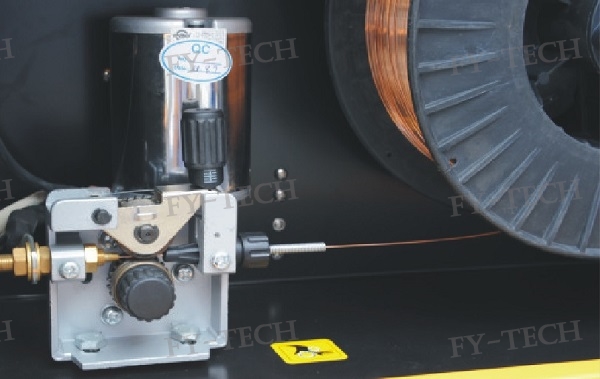

3) Wire Feeder
Pictures are for reference only, please subject to our available products.
Optional Accessories
1) C036 Steel Wire

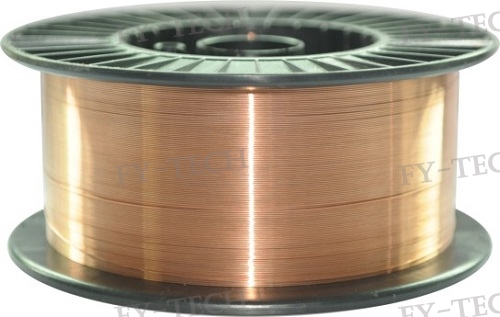

2) C037 Copper Alloy Wire

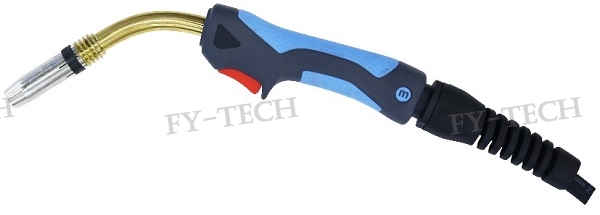

3) C007D 15AK, 24AK or 36AK Welding Torch

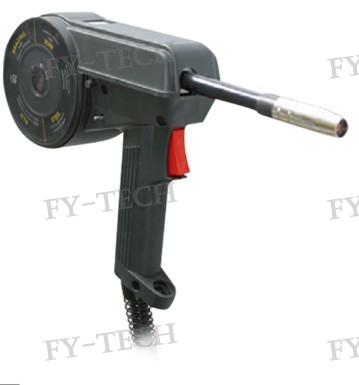

4) C034 Spool Gun
Pictures are for reference only, please subject to our available products.
