※ With an advanced integrated circuit, functional modules and the new technology of high-performance switching for convenient adjustments,
this unit is easy to learn how to use.
※ Independent development of mature technology, high reliability, easy operation and high efficiency.
※ The microprocessor control system optimizes the welding parameters. Using advanced digital control technology and user friendly design, all
you have to do is select the welding current to achieve the best welding results.
※ Voltage auto detect function.
※ Multi-bridge rectifier.
※ Complete with a VPOWER wire feeder.
※ Practical, reliable and advanced technology.
※ With HUA curved silicon steel sheet and energy efficient main transformer.
※ With DELIXI, OMRON and Panasonic high quality relays.
※ Taiwan TIANWEI switch.
※ Switch with gun testing function.
※ With the world famous EMIR brand welding gun.
※ Complete with tool box and anti-blocking agent.
Technical Data
|
Input Voltage
RMS Input Current
MAX Input Current
Min~Max Current/Voltage
Duty Cycle
No-load Voltage
Insulation Grade
Welding Wire
Welding Torch Cable
Regulation
Dimensions
Weight
|
AC380V 50/60Hz
21.6KVA
16.4A
35A/17V~320A/30V
35%
20-40V
F
Φ0.8-1.0mm
L: 3M Φ0.8-1.0mm
10
380×850×890mm
105kg
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.
Details

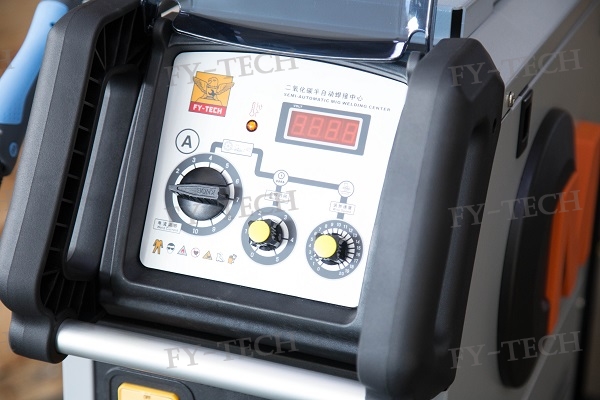

1) Control Panel

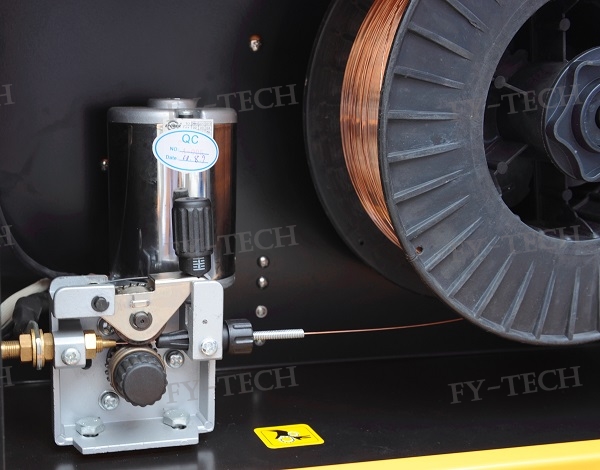

2) Wire Feeder
Pictures are for reference only, please subject to our available products.
