※ With the most advanced international IGBT inverter technology and advanced digital control technology and user friendly design, all you have
to do is to select the welding function corresponding to the workpiece thickness to achieve the best weld quality.
※ Digital control system offers greater stability of the output power.
※ Designed to repair different kinds of car steels such as conventional steel, stainless steel, etc.
※ Various welding procedures are available such as shrinking, washer welding, dent pulling, spot welding, flattening, wavy wire welding, stud
welding, OT washer welding, triangle washer welding etc.
※ Inverter technology with high efficiency, energy consumption can be reduced up to 50%.
Technical Data
|
Input Voltage:
Input Power:
Input Current:
IMAX:
Output Voltage:
Operation Way:
Welding Time:
Regulation:
Packing Size:
Gross Weight:
|
AC 220V/380V 50/60Hz
7kW
40A/12A
2800A
1-13V
Electronic timer continuously
0-99s
Stepless
66x45x43 (main machine)
63.5x45x23 (trolley)
45kg / 31kg
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.

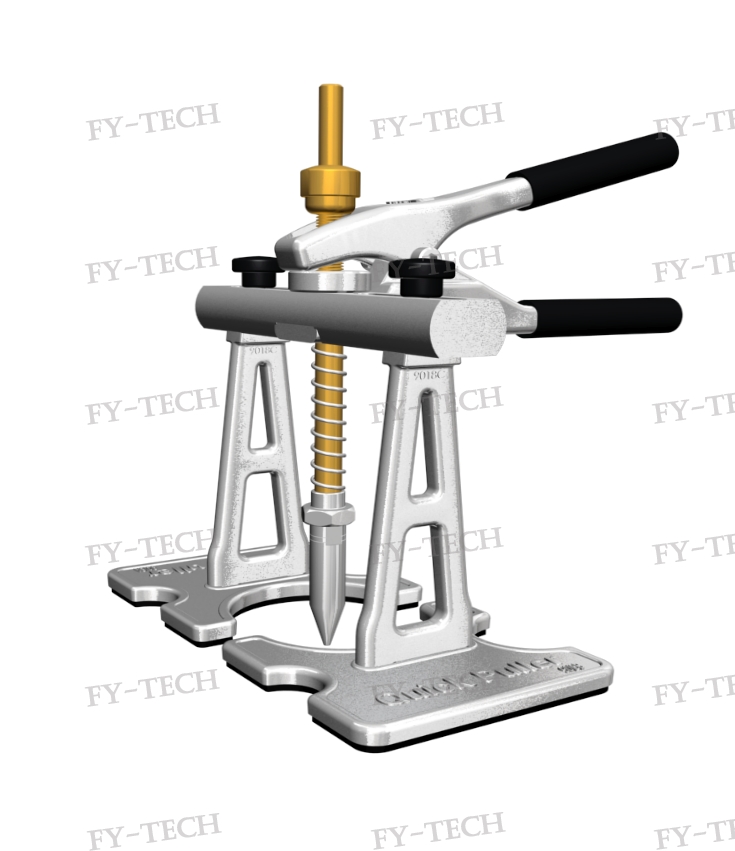

Quick Puller

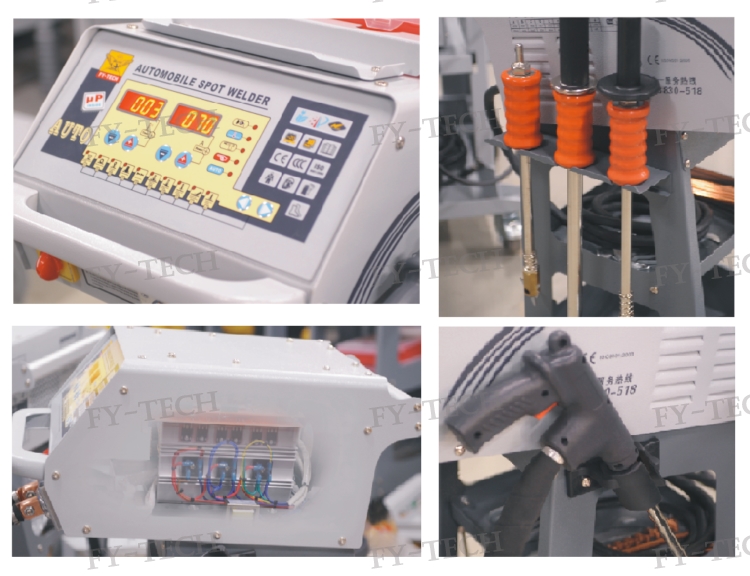

Details
Pictures for reference only, please subject to our available products.
For more information, contact us!
