※ Microprocessor control system optimizes the welding parameters. Due to the adoption of advanced digital control technology and
humanization design, all you have to do is select the welding current corresponding to the workpiece thickness to achieve the best weld
quality.
※ Welding gun testing function to evaluate the using status of welder more completely.
※ Overheat protection.
※ Suitable for dent pulling of different kinds of car steels such as conventional steel, stainless steel,etc.
※ Various of welding procedures are available such as shrinking,washer,direct-pulling, spot welding, flattening, waveform wire, stud welding,
OT washer, triangle washer, etc.
※ Digital control system with steady power output.
Technical Data
Input Voltage:
Input Power:
Input Current:
Max Welding Current:
One-side Welding Thickness:
Packing Dimensions:
Gross Weight:
|
AC 220 or 380V 50/60Hz
16.5KVA
48A / 16A
2600A
0.8+1.2mm
64×53.8×82.8cm
63kg
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.

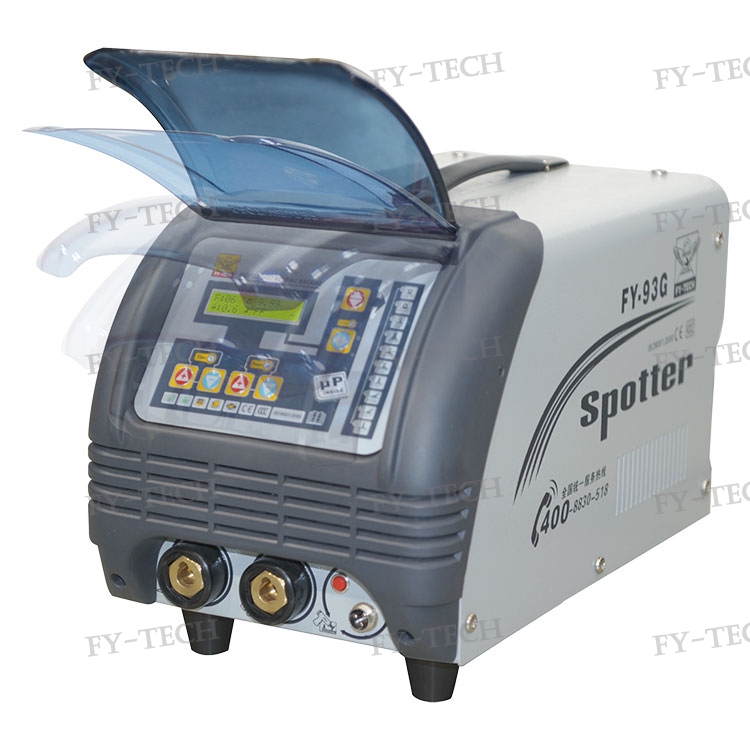

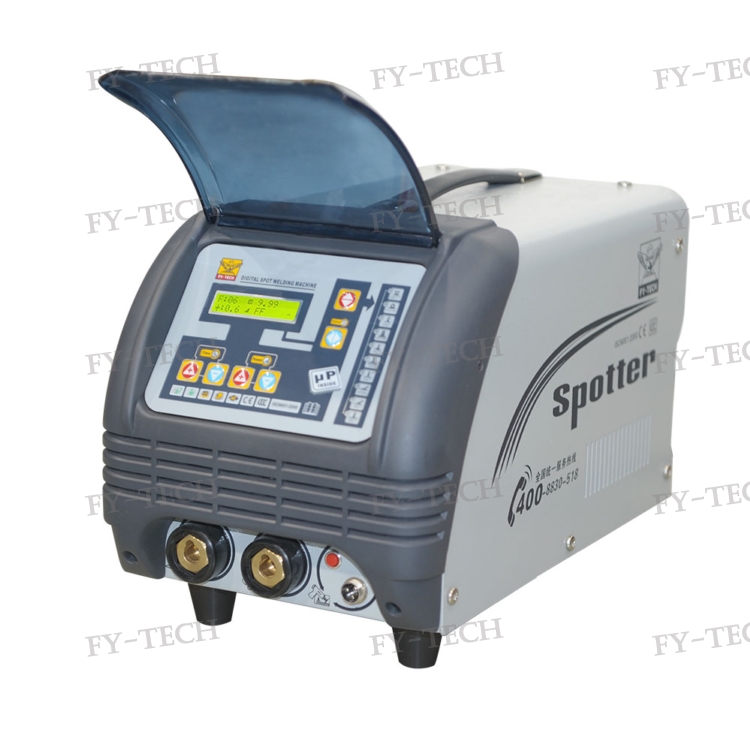

Main Machine

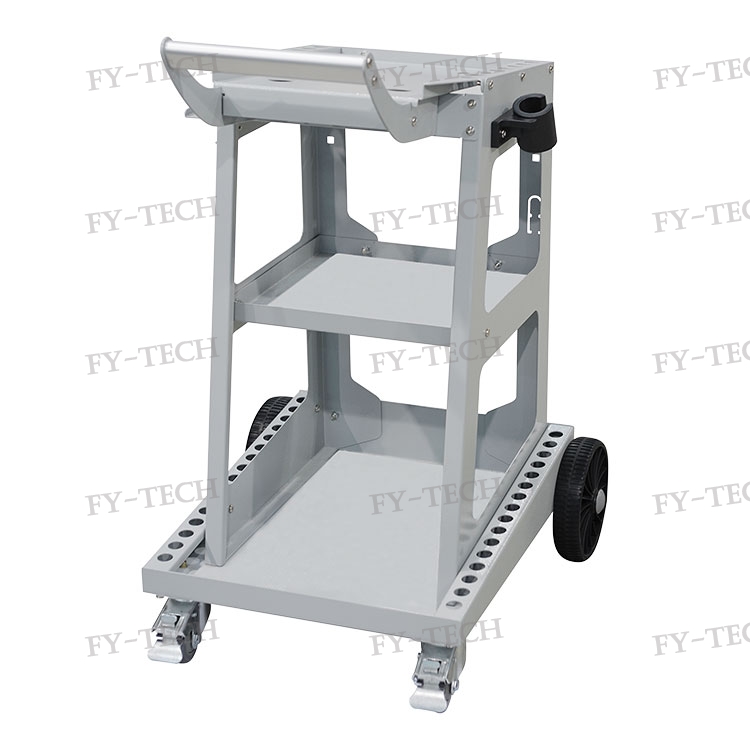

Trolley

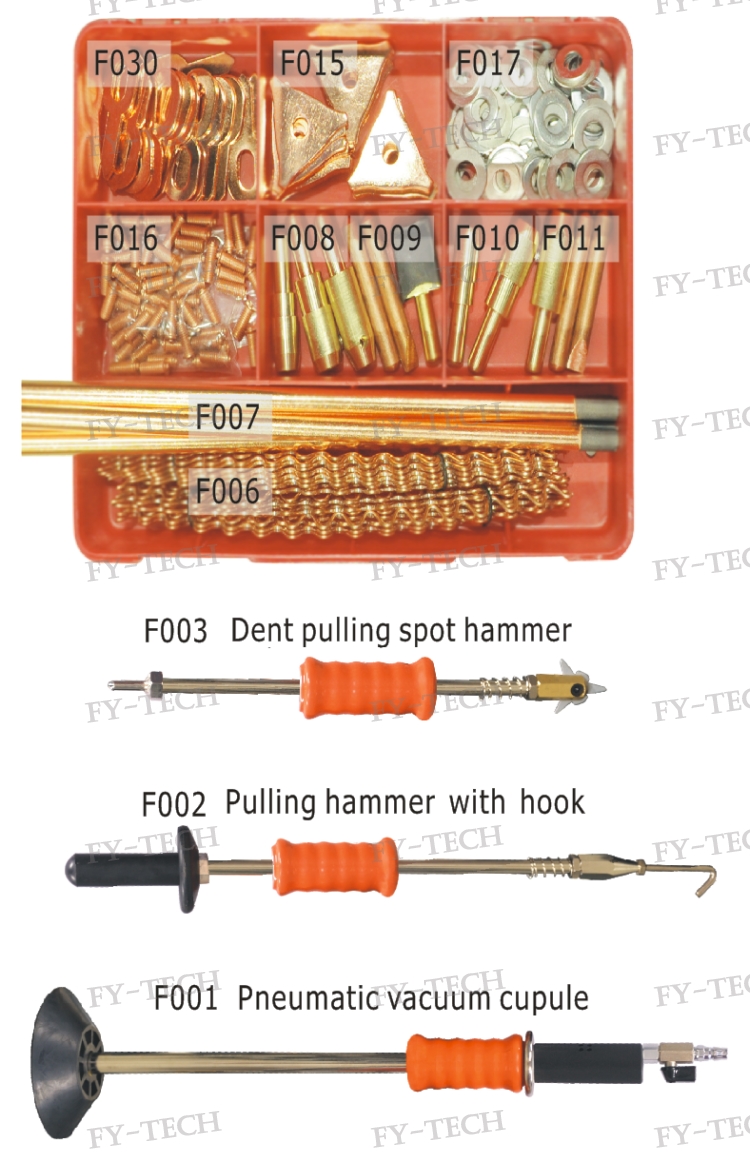

Accessories
|
Accessories
|
Quantity
|
|
F002 Pulling Hammer with Hook
F003 Dent Pulling Spot Hammer
F006 Wavy Wire
F007 Carbon Rod
F008 Spot Welding Electrode Tip
F009 Carbon Rod Connector
F010 Wavy Wire Electrode Tip
F011 Washer Connector
F013 Triangle Washer Connector
F014 Claw
F015 Triangle Washer
F016 Stud
F017 ɸ12mm Washer
F017 ɸ10mm Washer
F018 Earth Clamp
F019 Manual Cupule
F030 OT Washer
F033 Wrench
F034 Stud Connector
|
1 set
1 set
15pcs
3pcs
1pc
1pc
1pc
1pc
----
1pc
10pcs
30pcs
15pcs
15pcs
1pc
1pc
20pcs
1pc
1pc
|

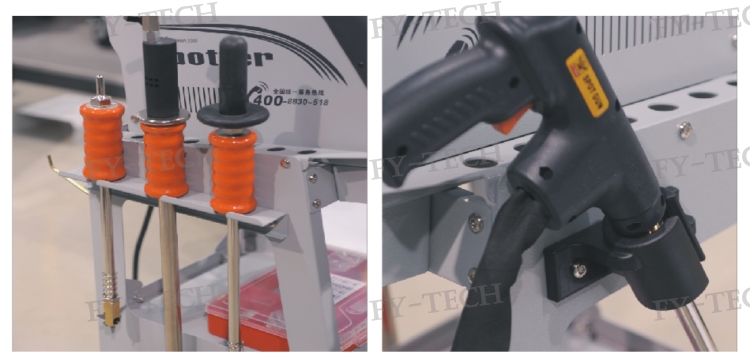

Details
Pictures for reference only, please subject to our available products.

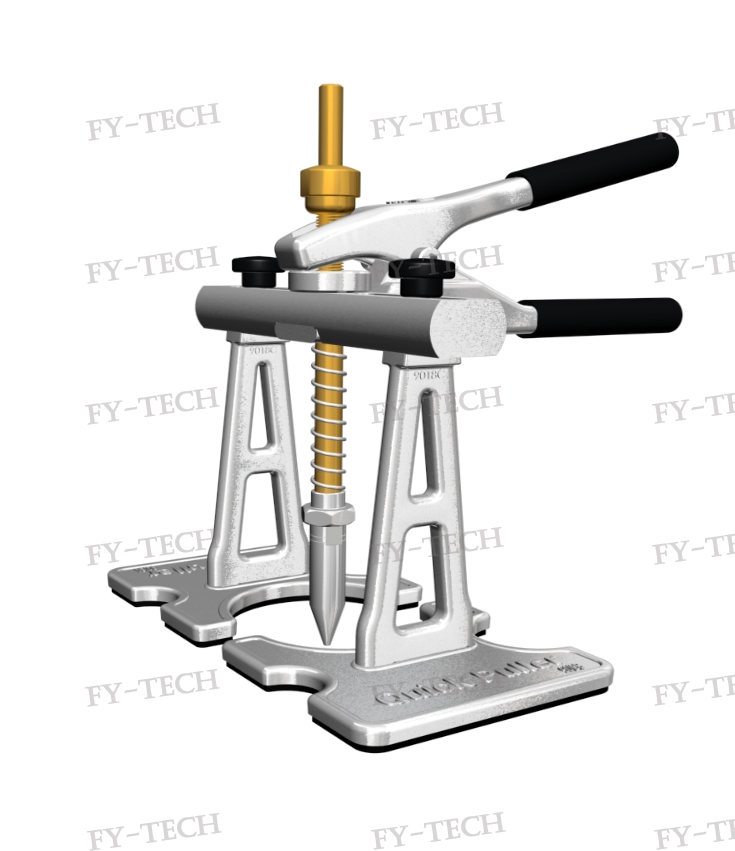

Optional Quick Puller
Pictures for reference only, please subject to our available products.
