※ Microprocessor control system optimizes the welding parameters. Due to the adoption of advance digital control technology and user friendly
design, all you have to do is select the welding current corresponding to the workpiece thickness to achieve the best weld quality.
※ Automatic mains voltage monitoring.
※ Welding gun testing function to evaluate the using status of welder more completely. Overheat protection.
※ Suitable for dent pulling of different kinds of car steels such as conventional steel, stainless steel, etc.
※ Various of welding procedures are available such as shrinking,washer,direct-pulling, spot welding, flattening, waveform wire, stud welding,
OT washer, triangle washer, etc .
※ Digital control system with steady power output.
Technical Data
|
Input Voltage:
Rated Input Power:
Rated Input Current:
Max Output Current:
Output Voltage:
Welding Time Range:
Material Thickness:
Packing Dimensions:
Gross Weight:
|
AC200V or 380V 50/60Hz
11.5KVA
32A
1800A
1-11V
0-99s
0.8+1.2mm
64×34×33.5cm (Main Machine)
65×18×86cm (Trolley)
31kg / 24.5kg
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.
Main Machine
Trolley

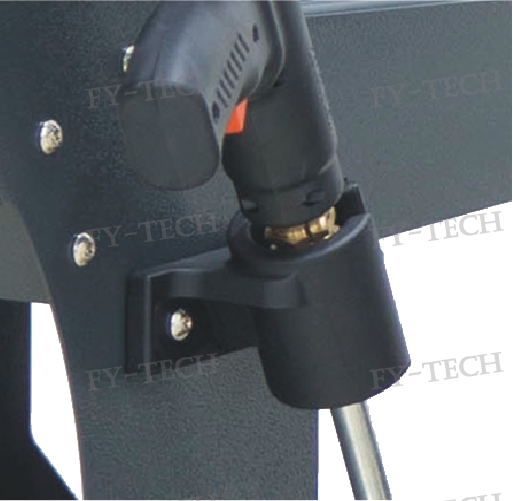

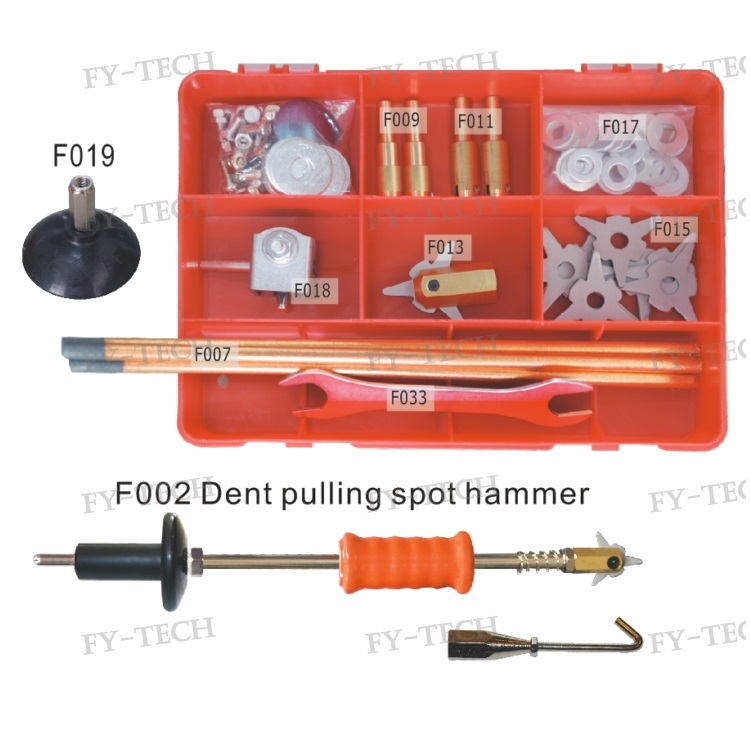

Details
Pictures for reference only, please subject to our available products.
