※ Advanced technology and easy operation. User friendly design, all you have to do is to slect the desirable voltage and current to obtain the
ideal charging conditions.
※ High precision timer.
※ Practical, reliable and advanced technology.
※ Multi-bridge rectifier.
※ With HUA vurved silicon steel sheet and energy efficient main transformer.
※ With DELIXI, OMRON and PANASONIC high quality relays.
※ High power transformer can start the engine rapidly and smoothly.

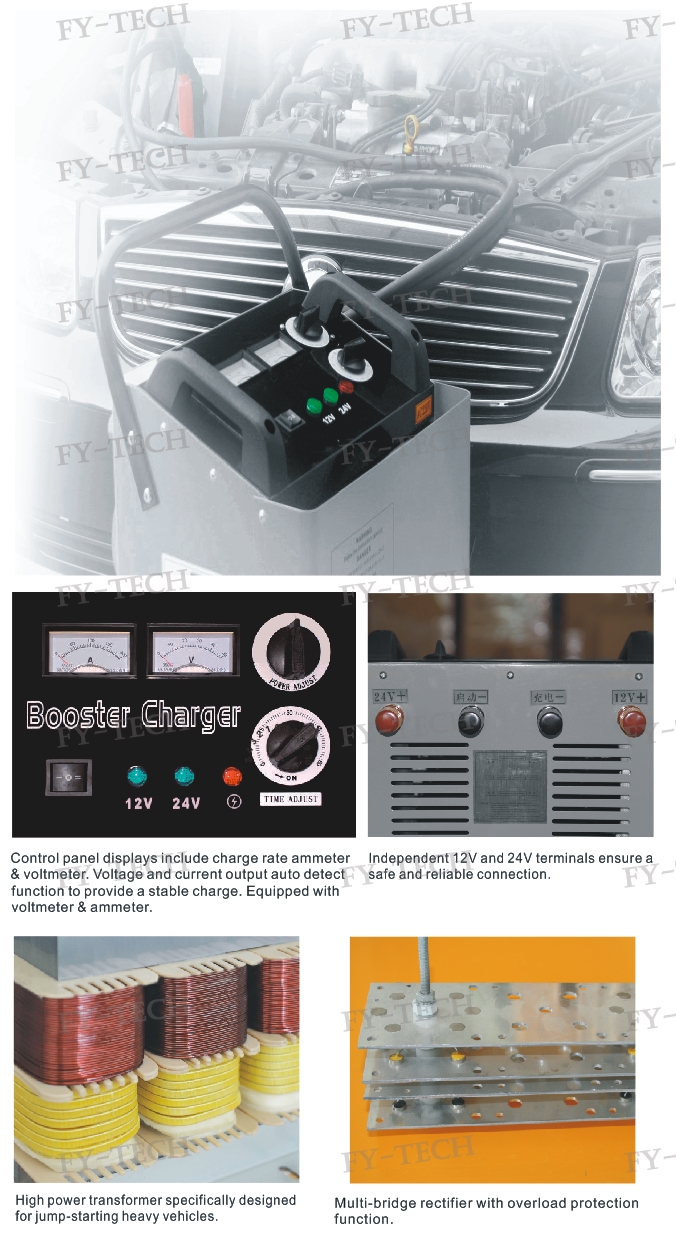

※ Control panel displays include charge rate ammeter & voltmeter.
※ Voltage and current output auto detect function to provide a stable charge.
※ Equipped with voltmeter & ammeter.
※ Protected against short circuit and overloads.
※ Able to charge more than one battery at a time.
※ Jump-starting, fast or slow charging for 12V-24V batteries.
Technical Data
Input Voltage
Input Power
Input Current
Stalls
Battery Voltage
Battery Capacity
Starting Current
Length of Positive and Negative Output Cables
Length of Power Cable
|
380V, 50/60Hz, 3ph
25KVA
10.20.30.40.50.60.70.80.90.95A
10
12V/24V
30-1200Ah
720A
3m+3m
3m
|
Due to the continuous innovation and upgrade, our products' features may be updated.
Please refer to actual products or contact us for more information.
Accessories

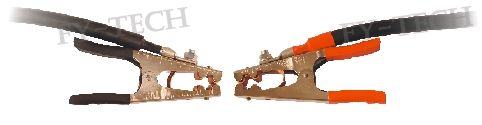

1. Positive and Negative Output Cables

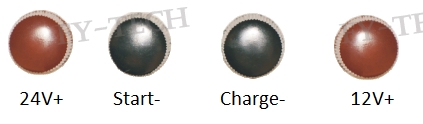

2. Terminal Screws
3. Flat Bottom Wheel
Details
Pictures for reference only, please subject to our available products.
